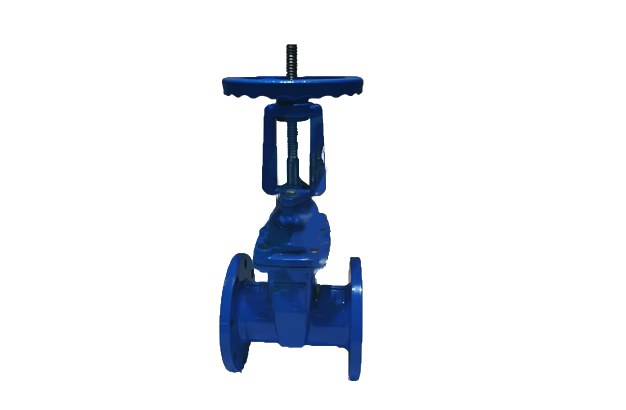

AWWA Rising Stem Resilient Seated Gate Valve
- Model:
- -
- Size:
- DN50-DN600
- Pressure:
- 250 PSI/17.2 Bar Non-Shock Cold
- Body Materials:
- Ductile Iron ASTM A536 65-45-12 GGG40, GGG50
- Applicable Medium:
- Water etc.
- Send us Email
Product Introduction
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Body Material: Ductile Iron ASTM A536 65-45-12 GGG40, GGG50
Wedge: Ductile Iron ASTM A536 65-45-12 GGG40, GGG50
Wedge Coating: EPDM/NBR ASTM D2000
Stem Materials: Carbon Steel, Stainless Steel 416, Stainless Steel 304, Brass, Bronze
Bolt: Carbon Steel, Stainless Steel 304, Stainless Steel 316
Gasket: EPDM, NBR
Cover: Ductile Iron ASTM A536 65-45-12 GGG40, GGG50
O-ring: EPDM, NBR, Silicone
Thrust Bearing: Brass
Gland: Ductile Iron ASTM A536 65-45-12 GGG40, GGG50
Dust Proof Gasket: EPDM/NBR
Hand Wheel: Ductile Iron ASTM A536 65-45-12 GGG40, GGG50
End Connection: Flanged
Product Features
1.The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2.Both gate and aluminum bronze bearing are in inside design good self lubrication ,high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3.Rubber wrapped gate anti-corrosion, good tightness.
4.Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5.The body is designed without gate slot, the smooth passage will not get impurities filling up, more applicable for sewage working condition.
6.The integral seal works reliably. For the high pressure seal, leaving zero leakage under 1.5 times nominal pressure and, for the low pressure one, under 0.02Mpa.
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 200 Micron think.
Working pressure from -1 to +16 bar and working temperature from -10 to +80℃
Technical Parameters
| AWWA C515 125LB | ||||||||
| SIZE | L(mm) | H | a(mm) | d(mm) | c(mm) | x-n | T(mm) | |
| DN | IN | |||||||
| 50 | 2" | 178 | 320 | 50 | 152 | 120.5 | 4-φ19 | 16 |
| 65 | 2.5" | 190 | 370 | 65 | 178 | 139.5 | 4-φ19 | 17.5 |
| 80 | 3" | 203 | 410 | 80 | 191 | 152.5 | 4-φ19 | 19 |
| 100 | 4" | 229 | 480 | 100 | 229 | 190.5 | 8-φ19 | 24 |
| 125 | 5" | 254 | 560 | 125 | 254 | 216 | 8-φ22 | 24 |
| 150 | 6" | 267 | 640 | 150 | 279 | 241.5 | 8-φ22 | 25.5 |
| 200 | 8" | 292 | 810 | 200 | 343 | 298.5 | 8-φ22 | 29 |
| 250 | 10" | 330 | 950 | 250 | 406 | 362 | 12-φ25 | 30.5 |
| 300 | 12" | 356 | 1050 | 300 | 483 | 432 | 12-φ25 | 32 |
| 350 | 14" | 381 | 1200 | 350 | 533 | 476 | 12-φ29 | 35 |
| 400 | 16" | 406 | 1360 | 400 | 597 | 539.5 | 16-φ29 | 37 |
| 450 | 18" | 432 | 1540 | 450 | 635 | 577.9 | 16-φ32 | 39.7 |
| 500 | 20" | 457 | 1650 | 500 | 699 | 635 | 20-φ32 | 43 |
| 600 | 24" | 508 | 1980 | 600 | 813 | 749.5 | 20-φ35 | 48 |
Technical Standard
1.Design and manufacture according to ANSI/AWWA C515, AWWA C509
2. Face to face according to ANSI B16.10
3.Flange drilling according to ANSI B16.1, ANSI B16.42
4.Pressure test according to ANSI/AWWA C515, AWWA C509, ISO5208
